Air Compressor Vfd Energy Savings​ (WEG Motor)

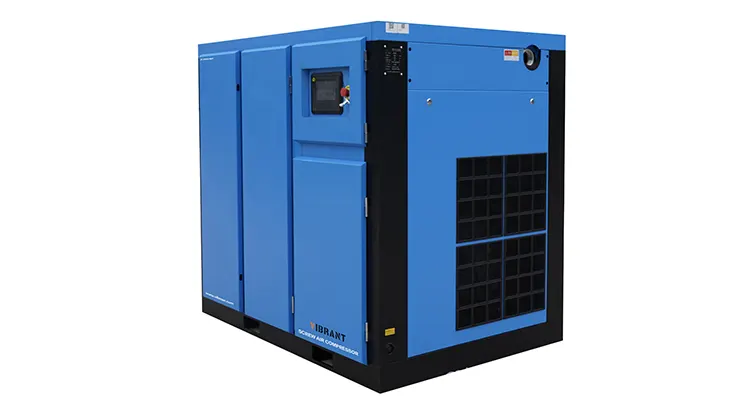

It is noted that this type of compressor operates at pressures between 0.8 to 1.3 MPa (116-188 psi) and the FAD is up to 32.5 m³/minute (1147.6 CFM). Its output is rated at 200 kW (270 bhp) in the dimension of 3550 mm x 2300 mm x 2300 mm based on a weight of 5000 kg, which makes it appropriate for industrial application. The DN125 outlet pipe diameter can be applicable for any type of usage because of the proper distribution of fresh air in this pipe.

• Energy Efficiency: VFD technology simplifies the rate of energy used to compress air to the actual air usage required at a certain period which will yield significant savings.
• High Air Delivery: It is capable of producing a flow rate of between 32.5m³/min equivalent to 1147.6CFM; at a maximum pressure, which can be used in industrial processes.
• Flexible Pressure Settings: At operating pressure, it has three grades which are 0.8MPa (116 psi), 1.0 MPa (145 psi), and 1.3 MPa (188 psi).
• Quiet Operation: The working environment is relatively quiet with ≤86 dB(a) ±2 for safe noise level has been designed to achieve this.
• Durable Build: Speaking of durability and reliability, the company needs an industrial machine, that must be capable of providing the required force and withstanding the necessary amounts of stress to keep during service during the years.

• Compressor Unit: At corrosion, and very effective in using continuous compression air for performance elements made and designed for long durations.
• Variable Frequency Drive: Enables control of input frequency allowing control of the motor speed optimally while at the same time minimizing the wearing of the unit.
• Cooling System: It is pretty well designed to hold and maintain optimal temperatures in circulation during running than high temperatures which may affect its circulation efficiency.

• Routine Maintenance: There are some activities that must be performed that will enhance productivity within the unit and which if appropriately managed should sustain the unit for a reasonably long time.
• Noise Management: In conditions when it is supposed to work under the noise level, it is recommended to monitor this characteristic in critical situations with the purpose of adhering to the norms of a certain country.
• Proper Installation: Make installation and setup correct in order to get the parameter of effectiveness and productivity on the highest level.
