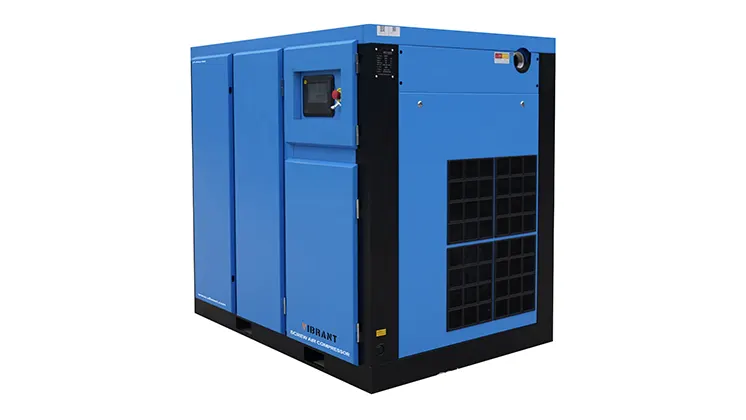

VFD air compressor (WEG Motor)

The JX-300AS-WEG variable frequency air compressor adopts a WEG high-efficiency motor and advanced variable frequency technology, providing users with an efficient and energy-saving gas compression solution. Its intelligent design allows the compressor speed to be flexibly adjusted based on actual usage needs, minimizing energy consumption, extending equipment lifespan, and ensuring stable gas output.

• WEG High-Efficiency Motor: Provides primary power, ensuring high efficiency and stable gas compression.
• Variable Frequency Controller: Adjusts compressor speed in real-time, optimizing energy use based on demand.
• Compressor Main Unit: Compresses gas using durable materials for long-term operation.
• Oil-Gas Separator: Ensures clean gas output by separating lubricant oil from compressed air.
• Cooling System: Prevents overheating and ensures stable operation under high loads.
• PLC Intelligent Control System: Automates adjustments, provides real-time feedback, and supports remote operation.

• Compressor Host:Responsible for gas compression, typically using a bipolar design to provide a higher compression ratio and gas output efficiency.
• Motor: Provides power, usually a high-efficiency permanent magnet motor that determines the compressor’s performance and energy consumption.
• Control System: Integrates a PLC control system for monitoring operational status, enabling automation and real-time data feedback.
• Oil-Gas Separator: Separates lubricating oil from the compressed gas to ensure the cleanliness of the output gas and protect downstream equipment.
• Cooling System: Maintains the equipment within an appropriate temperature range to prevent overheating, typically including cooling fans and radiators.
• Filter: Filters impurities from the intake air to ensure clean air enters the compressor, protecting internal components.
• Air Storage Tank: Stores compressed air, balancing supply pressure to ensure stable gas output.

These key components work together to ensure the bipolar air compressor operates efficiently and reliably across various industrial applications.

• Daily inspection: Daily checking of operating parameters, such as temperature, pressure, and current, and regular checking of bearings to ensure normal operation of the equipment.
• Regular replacement of wearing parts: Replace the oil filter, air filter and oil/air separator according to our recommended intervals.
• Lubricating oil replacement: Replace the lubricating oil regularly to ensure good lubrication and cooling of the screw head.
• System cleaning: Clean the inside and outside of the air compressor regularly to prevent dust and impurities from accumulating.
