Oil-Free Air Compressor
Air compressor providing clean air
Water Lubrication Oil-Free Air Compressor
The B-X10A-16 air compressor belt driven comes as the ultimate choice for superior compressed air delivery. If you are operating in a mill environment or confined construction site, this belt-driven compressor guarantees operation effectiveness and easy handling. This product is small in size while at the same time is designed with a robust nature that ensures that it can be easily migrated, installed, and operated in any environment even the most harsh ones. Starting from running small tools to sustaining large pieces of industrial machinery, the B-X10A-16 is designed to keep your business going and give you less troubleshooting time.
JXW-10APMF
- Pressure(MPa): 0.8/1
- Exhaust Volume(m³/min): 1/0.8
- Power(KW/HP): 7.5KW/10HP
- Dimension(mm): 1100*760*1060
- Weight(kg): 300
- Pipe Diameter: RP 3/4
- Startup Mode: Variable Frequency Drive (VFD)
- Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
Get a quote now
Details of JXW-10APMF-10HP/7.5KW
Product Features
- High Exhaust Pressure: Capable of electric power operations at 0.8 MPa, versatile for most pneumatic operations.
- High Efficiency: Using water as the lubricant medium has a high specific heat capacity, which enables the operating temperature to be controlled within the range of 40 to 60 degrees Celsius, resulting in a higher energy utilization rate.
- Air-Cooled System: Described as suitable for continuously performing in clients’ premises without overheating in the process of high temperatures.
- Low Noise Operation: Has a maximum noise emission standard of ≤70 dB(a) which makes it suitable for use in areas with sensitive hearing。

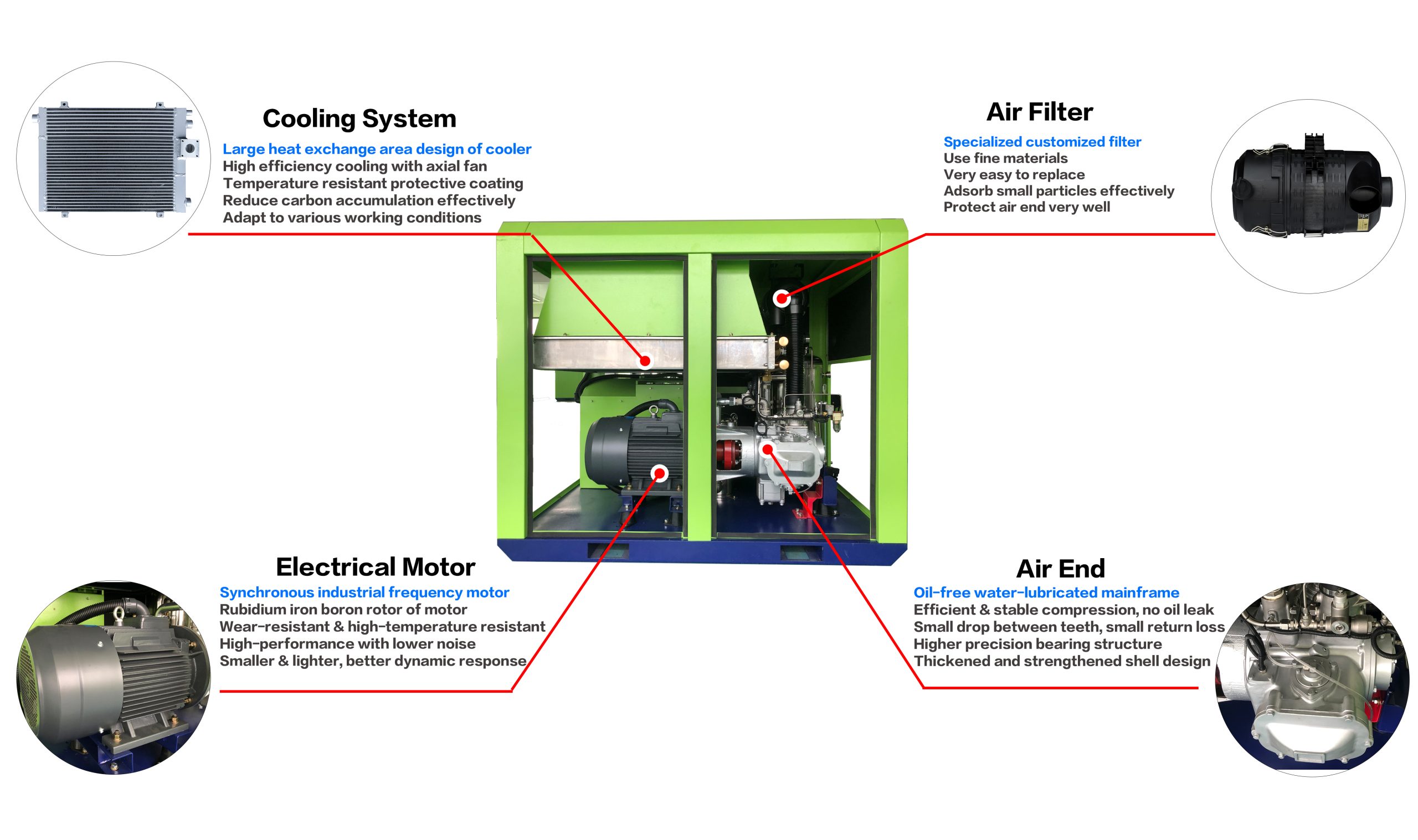

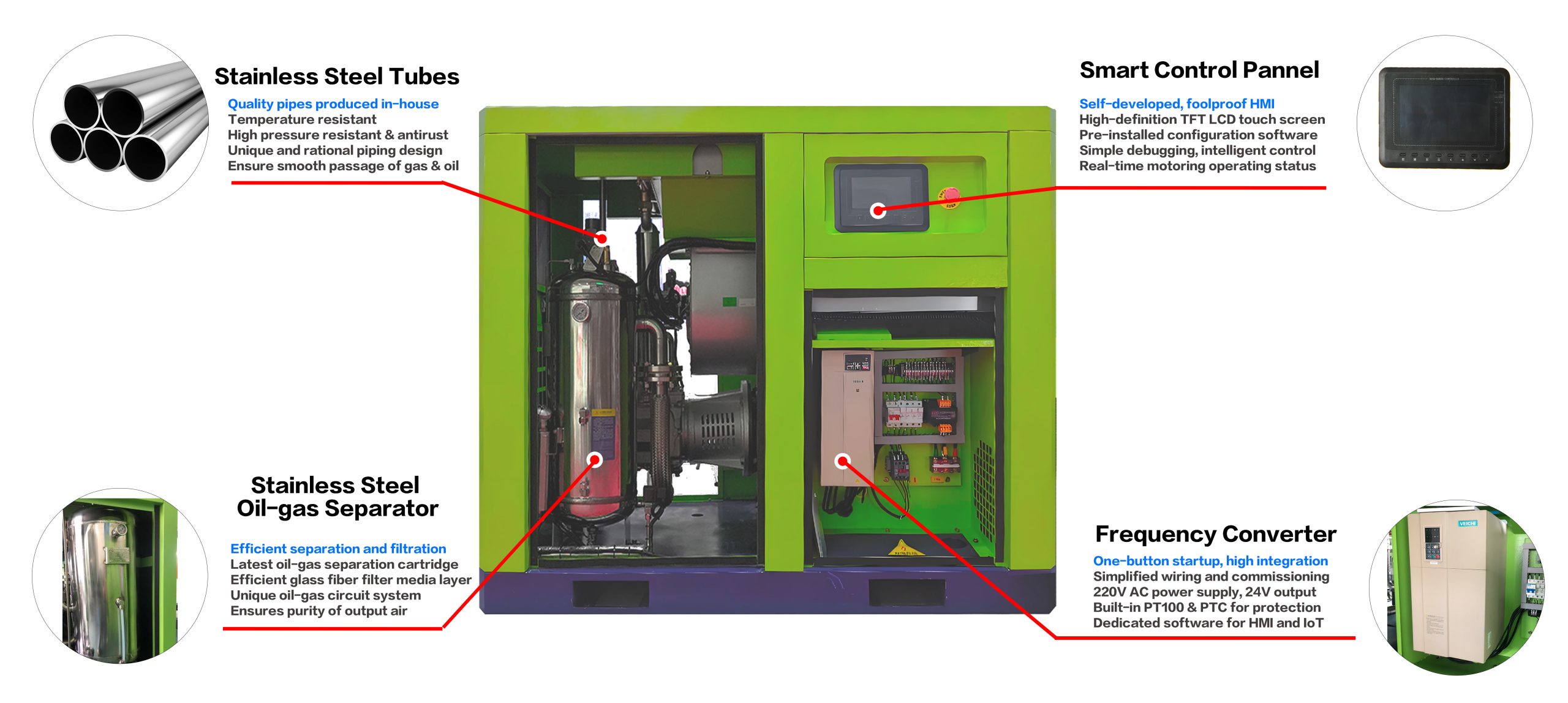

Main Parts and Wear Parts
- Screw Compression Mechanism: It is used for efficient and effective performance in compressor air applications with low energy losses.
- Cooling System: The air-cooled design is efficient in controlling the operating temperatures, and at the same time the viability of the unit is well enhanced.
- Filters: Provides for the all-important task of minimizing the oil content in the exhaust and protecting components within the engine from detrimental particles.
- Drive System: Direct connection technology for power transmission from the motor to the compressor is incorporated within the product.
Precautions
- Temperature Monitoring: It is also important to ensure that the ambient temperature does not exceed the maximum set limit of 40 degrees Celsius to avoid determined levels of heat.
- Routine Maintenance: Quite often check the oil level and replenish it if necessary, also replace filters, and do certain adjustments for the proper functioning.
- Electrical Supply Compatibility: Check that the power supply matches the compressor requirement of either 380V/50Hz in order to avoid some problems occurring.
- Noise Level Monitoring: Cross-check noise levels from time to time in order to adhere to regulations; especially in quiet areas.
