Two Stage 80 Gallon Air Compressor

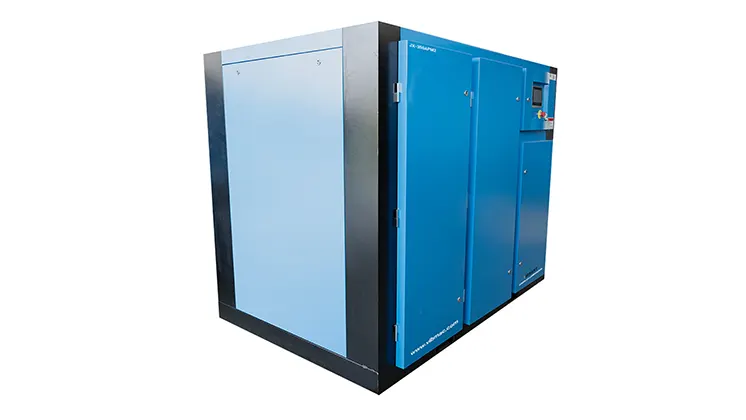

The two-stage 80 Gallon Air Compressor – JX-350APM2 is an industrial series that has the requirement to offer the necessary air pressure as well as volume for jobs that require extra pressure. This powerful unit is suitable for manufacturing industries, automobile repairs, and many constructions repetitively to ensure an adequate supply of compressed air as required. The JX-350APM2 has a powerful structure and technology as the competitive advantage that enhances performance and productivity.
- Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
- FAD (m³/min): 58/55.5/53/45.8/40.5
- Power(KW/HP): 250/350
- Weigt(kg): 7000
- Pipe Diameter: DN125
- Dimension(mm): 3760*2260*2200
- Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
-
Energy-efficient -
Stable operation -
Low noise -
Intelligent
Get a quote now
The standard working pressure of this strong compressor is at 70 bar, 80 bar, 90 bar, 100 bar, and the highest of 130 bar or 87 psi, 102 psi, 116 psi, 145 psi, and 189 psi according to user requirements. The unit offers a FAD from 58 m³/min down to 40.5 m³/min and CFM from 2048.0 to 1430.1 as shown from the formula above. Its outlet pipe diameter is DN125 which ensures suitable air distribution it is also fit for various pneumatic systems. It has a dimension of; Length 3760 mm, width of 2260 mm, and height of 2200 mm and it has a total of 7000 Kg weight and is designed to endure even the worst climates.
- High Pressure Capability: Accompanied by several pressures hence it is appropriate to be used in different industrial processes where various pressure of air is needed.
- Large Air Delivery: Due to its size, it provides sufficiently high quantities of airstreams to tools and machinery to achieve planned levels.
- Two-Stage Compression: Increases efficiency and performance via releasing higher water pressure capability as well as reducing power consumption.
- Robust Construction: Intended to move bulky items and work under the usage that seems to be a norm for many organizations today.-
- Efficient Pipe Diameter: DN125 pipe diameter enables an adequate air flow rate with a low-pressure drop across the system and hence increases the efficiency of the system.

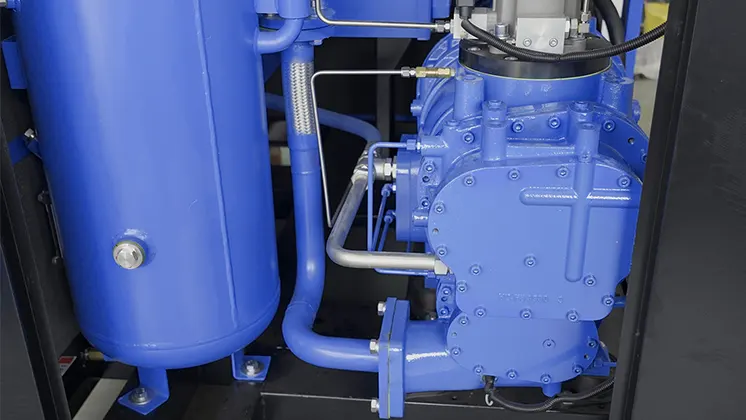

- Compressor Unit: Principal region of the realization of the system that works to provide high air compression according to the need.
- Air Receiver Tank: Storing compressed air for use in time of need and reduces the number of times some kind of compressor requires to be switched on and off.
- Cooling System: Maintains the working conditions of the equipment at their best to get the best performance and discourage overheating.
- Air Filter: It shields the inside components to avert any influence that might alter the sort of air it delivers eliminating any undesired dirt.
- Routine Inspections: Also on this is that the unit needs to be maintained and checked at least once a week if not more if used to avoid breaking down.
- Safe Installation Practices: Mount correctly in the right environment where they do not overheat, and in particular conform to the required safety standards.
- Monitor Operating Conditions: This explains why it is very crucial to keep track of pressure as well as temperature in a system so as to maintain high functionality and minimal complications.
- Manufacturing Plants: Applicable for ch: Pneumatic tools and production line; Other equipment- manufacturing industries.
- Automotive Workshops: Supply air to equipment such as impact wrenches, air ratchet, and pneumatic paint sprayers, and therefore enhance throughput.
- Construction Sites: This type of equipment goes well with most of the pneumatic tools and equipment and is paramount, especially in construction that requires a high rating.
- Heavy Equipment Maintenance: Delivers the required air for testing and operation of extensive mechanical and electrical equipment for repair in testing centers.
| Item | Technical Parameter | |
| Unit Model | JX-350APM2 | |
| Pressure(MPa) | 0.6/0.7/0.8/1.0/1.3 | |
| Pressure(psi) | 87/102/116/145/189 | |
| FAD(m³/min) | 58/55.5/53/45.8/40.5 | |
| FAD(CFM) | 2048.0/1959.7/1871.4/1617.2/1430.1 | |
| Power(kW/hp) | 250/350 | |
| Dimension(mm) | 3760*2260*2200 | |
| Weight(Kg) | 7000 | |
| Pipe Diameter | DN125 | |
